16-Port Unmanaged Fast Ethernet Switch
Availability : 2-3 weeks
EH2316-2G
16-Port Unmanaged Fast Ethernet Switch
Availability : 2-3 weeks
EH2316-2G

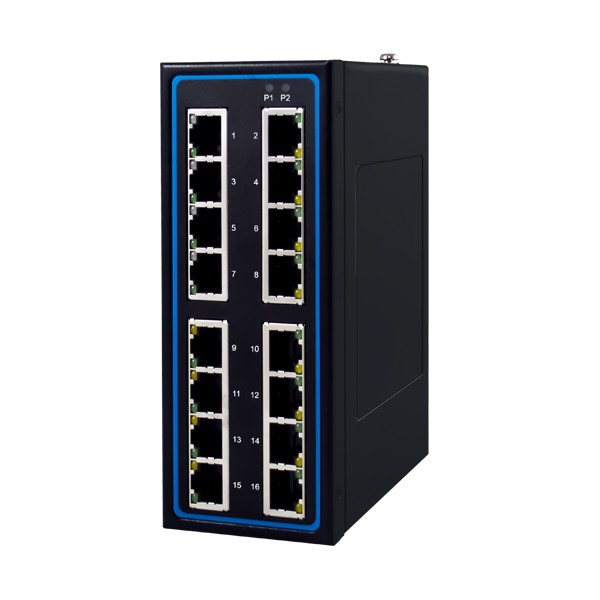

EH2316-2G is an entry level unmanaged fast ethernet and gigabit switch with 14 10/100BASE-T(X) RJ45 and 2 10/100/1000BASE-T(X) ports, suitable and certified for EN/UL 60950/62368, CE and FCC. Its modern design makes the device installation possible on DIN-Rails with not much space available, or directly on the field.
IP30 housing design protects the EH2316-2G to resistance towards dust, dirt and it also offers shock/drop/vibration that certified with IEC 60068-2 standard, with them it’s suitable for the toughest industrial applications even without the need of additional housing. And the operating temperature ranges is from -10°C to 60°C.
| Ethernet | |
|---|---|
| Connector | RJ45 |
| Ports | 14 x 10/100 Mbps RJ45 2 x 10/100/1000 Mbps RJ45 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE802.3ab for 1000BASE-T(X) IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1p packet prioritization (for Profinet CC-A) |
| Flow Control | Back pressure and pause frame-based flow control schemes |
| Auto MDI/MDI-X | Yes |
| Power | |
|---|---|
| Input Voltage | 12~48 VDC |
| Input Current | 0.62 A Max |
| Power Consumption | 7.4 W |
| Connector | 5.08mm 5-pin Terminal Block |
| Reverse Polarity Protection | Yes |
| Redundancy | Yes |
| Physical Properties | |
|---|---|
| Housing | IP30 protection, SPCC Metal housing |
| Installation | DIN Rail, Wall mount (optional) |
| Dimension (W x D x H) | 54 mm x 113mm x 145mm |
| Weight | 700g |
| Warranty | 5 years |
| Environmental Limits | |
|---|---|
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
