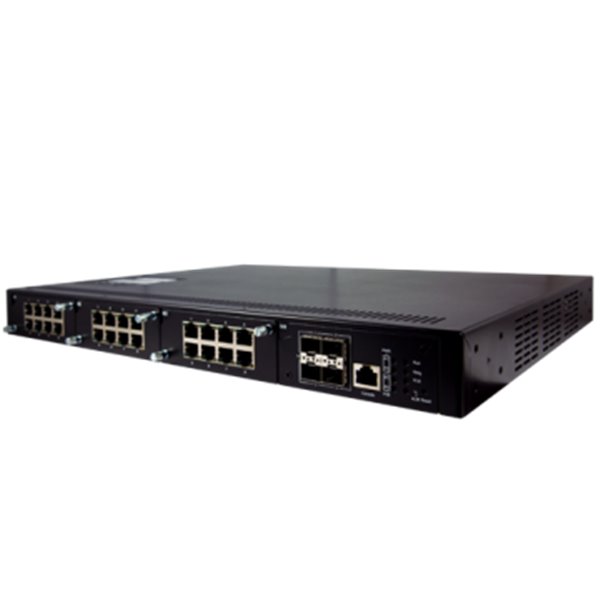

RHG7528-CPU- 410GSFP-DC

• Maximum 128Gbps switching capacity, 95.24Mpps throughput
• Rugged industrial design for -40~75° C harsh environment operation
• Flexible modular configuration, 3 Module-dedicated slots
• Up to 24 PoE ports, with maximum 720W of PoE power budget
• 4 x 1 Gigabit or 4 x 10 Gigabit SFP Uplink slots
• Up to 20 possible configurations in 3 power input versions
• ITU-T G.8032 ERPS Ring, RSTP, or MRP (client) redundancy
• Advanced management features
• PROFINET v2.33 Conformance Class B Certified, Provides GSD Description file

Flexible: Atop’s high-density RHG7528 Managed Rack-mount switch will provide you the flexibility your application needs. You will be able to choose among 6 different Core versions (based on power supply and uplink port configurations) and three different 8-Port modules and customize your device in a very simple way.

Designed for PoE, in wide temperature: RHG7528 supports up to 24 Gigabit ports in any 8-port multiple configuration. Specifically designed for bringing power through Ethernet cable virtually anywhere, a maximum output Power over Ethernet of 720W over the 24 ports is allowed (PoE/PoE+ configuration - 802.3af/at).
Available in three power input variants, RHG7528 is EN 60950-1:2006 certified and is designed to withstand the harshest environments. Its fanless design and EMC Level 3 protection guarantee reliable operations within -40 and +75°C, with 24 PoE ports running full power and makes it suitable to be used for almost every application.

Powerul and versatile: With its high performance, it provides network redundant self-recovery mechanism is less than 20ms on full load that enables the user to build a reliable network through almost any redundant ring topology. RHG7528 supports ITU-T G.8032 ERPS Ring, IEEE802.1D-2004 RSTP, STP, MSTP, MRP (Client), iA-Ring, iA-Chain and many compatible rings protocols for network redundancy. With a Multifunctional web dashboard, its offers intelligent features such as Quality of service (QoS), IGMP, Port mirroring and security.

Automation and IoT ready: Being Profinet CC-B v2.33 certified and Ethernet/IP ready make RHG7528 the perfect candidate for being the backbone of your Industrial automation. Additionally, all device performance and status data is also available as a Modbus register and as an MQTT data point, allowing your PLC or control unit to access diagnostic data in real-time through Modbus TCP protocol or providing worthy information to a Big-Data Analytics engine.
