PID controller 32x74 mm Control and alarm functions, 1 input programmable for different sensors
NFC configuration
|
ORDERING CODES |
ATR124-ABC | ATR124-AD | ATR124-ABC-T | ATR124-AD-T |
|---|---|---|---|---|
| Power Supply | 24...230VAC/DC ±15% 50/60 Hz | 12..24 VAC/VDC ±10% 50/60 Hz | 24..230 VAC/VDC ±15% 50/60 Hz | 12..24 VAC/VDC ±10% 50/60 Hz |
| Power consumption |
5 Watt/VA |
4,5 Watt/VA |
5 Watt/VA |
4,5 Watt/VA |
| Display | Display 3 digits 0,56" white + signalizing LEDs | |||
| Analogue inputs | 1x 16bit, programmable for thermocouples K, J, S, R, T (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. or ±1 digit), Thermoresistance PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..10V (54000 points), 0..40mV, 0..60mV Potentiometers F.S. 1...150Kohm (50000 points). | |||
| Sampling time | Programmable up to 2,1 ms (frequency up to 470 Hz) | Programmable up to 2,1 ms (frequency up to 470 Hz) | Programmable up to 2,1 ms (frequency up to 470 Hz) | Programmable up to 2,1 ms (frequency up to 470 Hz) |
|
Digital outputs |
1 x 12 V, 25 mA. | 1 x 12 V, 25 mA. | 1 x 12 V, 25 mA. | 1 x 12 V, 25 mA. |
|
Relays outputs |
2 x 5 A - 250 VAC | 2 x 5 A - 250 VAC | 1 x 5 A - 250 VAC | 1 x 5 A - 250 VAC |
|
Serial communication |
- |
- | RS485 (1200..115200 Baud) galvanically isolated | RS485 (1200..115200 Baud) galvanically isolated |
version : 2 relays 8 A + 1 SSR 12Vdc voltage : 12...24 Vac/Vdc 230 Vac
| Combinations | Stock | Price | quantity | Add to cart |
2 relays 8 A + 1 SSR 12Vdc
12...24 Vac/Vdc

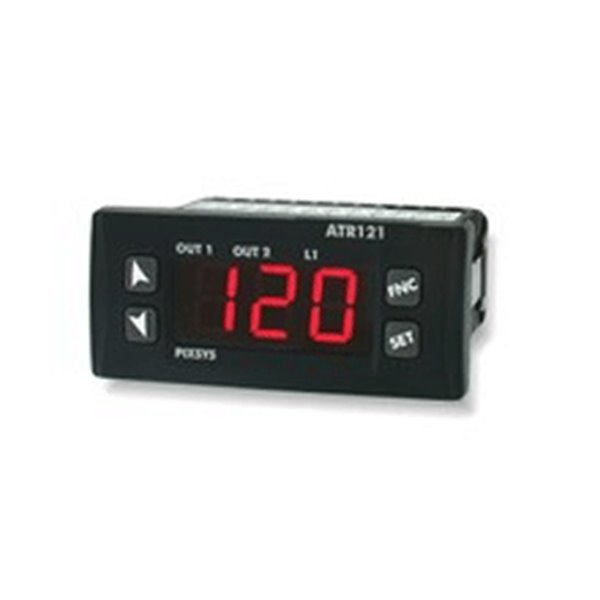

ATR121-AD |
stock |
99,69 € |
|
|
2 relays 8 A + 1 SSR 12Vdc
230 Vac
ATR121-B |
2-3 weeks |
99,69 € |
|
