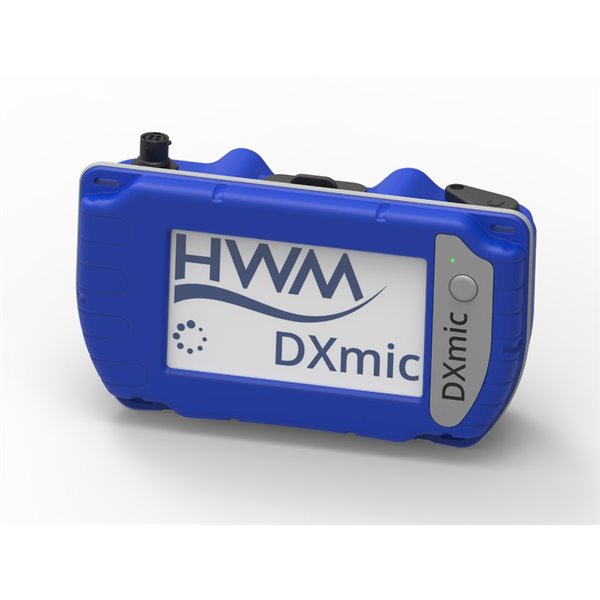

DXmic is the latest generation ground microphone from HWM. Building on the excellent reputation of the Xmic, the DXmic features touch screen operation and a wealth of new innovative features.
The DXmic has the highest sound quality and supports audio recordings, so playback of any leak noise can easily be accessed via USB. The device comes with a robust carry case which can also be used as a charging station for the device.
Ordering code:
| DXMIC (Standard headphones + softcase) | |
| REPLACE DXMIC BY DXPRO TO HAVE THE PRO VERSION OF DXMIC | |
| DXMICLS+HANDPRO | DXmic Lite ground microphone. Includes base unit with colour LCD, magnetic and tripod sensor, handprobe, rods, standard headphones, mains charger in soft case |
| DXMIC/STD/S | DXmic ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", standard headphones, mains charger in soft case |
| DXMIC/STD/S+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, standard headphones, mains charger in soft case |
| DXMIC (Standard headphones + hardcase) | |
| DXMICLH+HANDPRO | DXmic Lite ground microphone. Includes base unit with colour LCD, magnetic and tripod sensor, handprobe, rods, standard headphones, integrated case charging in hard case |
| DXMIC/STD | DXmic ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", standard headphones, integrated case charging in hard case |
| DXMIC/STD+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, standard headphones, integrated case charging in hard case |
| DXMIC/STU+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, Sennheiser headphones, integrated case charging in hard case |
| DXMIC/DC+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, Dave Clarke headphones, integrated case charging in hard case |
| DXMIC/STU | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", Sennheiser headphones, integrated case charging in hard case |
| DXMIC/DC | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", Dave Clarke headphones, integrated case charging in hard case |
| DXMIC OPTIONS | |
| DXPRO | TO HAVE THE PRO VERSION OF DXMIC, and use the Dxmic App |
| HANDPRO | Handprobe with, rod and tripod |
| HANDPRO US | Handprobe with thin rubber, rod and tripod |
| HANPRO MAGNET | Magnet for Hanpro |
| /AV | David Clarke, headphones |
| /STU | Studio Senheiser headphones |
| /BT | Bluetooth Zonoki Headphones |
| DXMIC EXTRA | |
| CABA6235 | DXMIC 12v car charger |
| RMICFOOT | Large surface sounding sensor "Elephants Foot" |
| RMICHAN | Handle only for "Elephants Foot" sensor |
| CABA6020 | Xmic to sensor cable |
| HANDPRO US | Handprobe with thin rubber, rod and tripod |
| CAS6000 | Optional hard case for Xmic Lite |
| CAS6010-2 | Optional hard case for Xmic |
| HEAAS4000 | David Clarke Headphones for Xmic |
| PC0205 | Tmic 12v car charger with USB adaptor |
| HEA0040 | Dxmic standard headphones |
| HEA8000 | Tmic/Dxmic Bluetooth headphones |
| HEAAS4005/S | Dxmic David Clarke Headphones |
| CABA6225 | Dxmic base unit to sensor cable |
| BAT3097 | Dxmic battery pack |
| HEAAS5000 | HD215 SENNHEISER HEADPHONE ASSY (MONO) |
| CABA6020 | X-MIC AMP TO R-MIC FOOT SENSOR CABLE 1.5M |
| BAT2010 | BATTERY PP3 NIMH- ARH9001- VARTA V7/8H |
| HDW6055 | X-MIC/LMIC HANDPROBE EXTENSION ROD MD-040-0014 NO TIP |
| HDW6050 | X-MIC/LMIC HANDPROBE ROD MD-040-0008 WITH TIP |
| CABA6020 | X-MIC AMP TO R-MIC FOOT SENSOR CABLE 1.5M CA-052-0003 |
| CABA6530 | L-MIC HANDPROBE TO L-MIC CABLE ASSY .75M CA-070-0009 |
| Frequency range | 0 to 5200Hz |
| Battery life | Minimum 25 hours (without backlight) |
| 15 hours (with backlight) | |
| Battery charge | Maximum 8 hours |
| Charger | Universal 110-240V AC mains charger with 12V DC output (Optional in car adapter) all items can be charged in case . |
| Weight | 180g (with batteries) |
| Temperature | Operating temperature range -15C to +50C |
| Dimensions | 193H x 109W x 60D mm (7.5”H x 4.2”W x 2.3”D). |
| Keypad | Touch screen LCD |
| Display | 5.0 inch TFT LCD |
| Single level display | 0-99 |
| Minimum level profiling | 10 readings |
| Headphones | Studio quality headphones are supplied as standard Aviation quality headphones are available as an option |
| 'Elephants foot'' microphone | High sensitivity piezo-electric sensor mounted in windproof, nitrile rubber housing. Low noise |
| 1.5m cable | |
| Weight: 2.9kg | |
| Hand probe Attachment optional | The hand probe is supplied with a tripod foot and two stainless steel probe rods For sounding in soft ground plus magnetic contact for better coupling to fittings Each probe rod is 400mm in length |
| Displays | Digital and 'meter' noise level Frequency analysis |
| Filter selection | |
| Memory feature |
