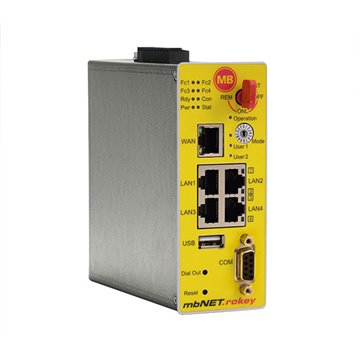

mbNET.rokey with serial and Profibus interface

https://www.inelmatec.be/6535-thickbox/mbnet-met-seriele-en-profibus-interfaces-mbnet-met-seriel-en-profibus-int-mpi-profibus-tot-12-mbit-s-rs-232-485-interface-4x-lan.jpg

MPI/PROFIBUS up to 12 Mbit/s, RS-232/485 interface, 4x LAN interfaces, 1x WAN interface, Firewall, DynDNS, DHCP, 4 digital inputs, 2 digital outputs, VPN (IPSEC/PPTP, OVPN) modem: analog, Wifi, 3G, 4G LTE

More details...

‹ ›

Display all pictures

Availability : 2-3 weeks

Reference : RKH 235

More info
Data sheet

MPI/PROFIBUS up to 12 Mbit/s, RS-232/485 interface, 4x LAN interfaces, 1x WAN interface, Firewall, DynDNS, DHCP, 4 digital inputs, 2 digital outputs, VPN (IPSEC/PPTP, OVPN) modem: analog, Wifi, 3G, 4G LTE

ports MPI/Profibus|WAN|RS232/RS485|ethernet
software DHCP-DNS-Server|Toolbox|LUA|I/O manager
modem external Router / WAN|2G|4G|analog|PPPoE|3G|Wifi
VPN functionality OpenVPN (free)|VPN-IPsec/VPN-PPTP/VPN-L2PT|OpenVPNs (Client/Server)

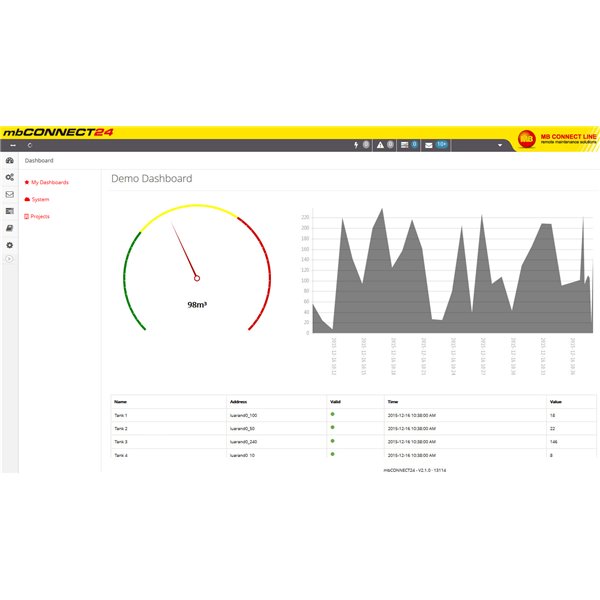

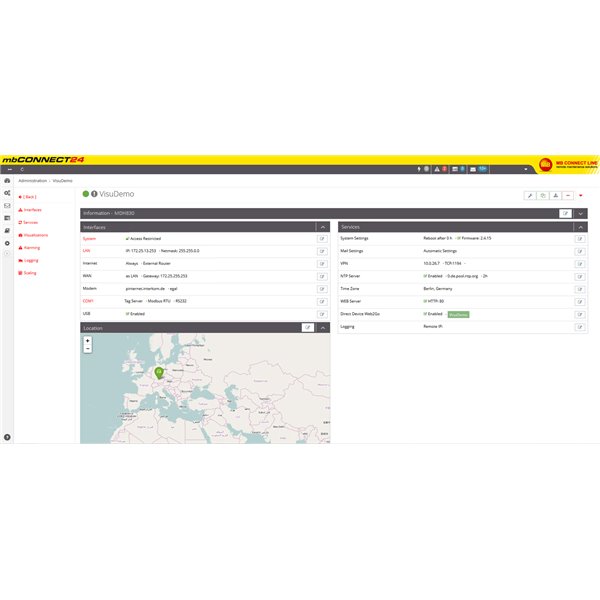

application WEB visualisation|Datalogging|M2M communication|Remote Maintenance
