• From 400A to 1600A Primary currents
• 5A or 1A Secondary output
• 85 mm width
• opening: 45 mm, 60x15 mm, 50 x 30 mm
• Sealable terminal cover
• Supplied with DIN Rail mounting clip and mounting feet
• Compact design
• Indication of primary current flow (arrows on case body)
Product Description

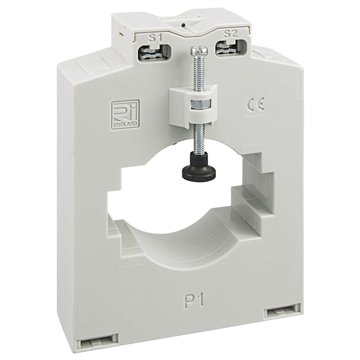

The RI-CT090 Series forms part of a large family of solid
core single phase moulded case current transformers from
Rayleigh Instruments.
These transformers are suitable for monitoring current flow
in commercial, industrial or utility applications. They are
designed to connect any standard metering or relay product
requiring a 5A or 1A output and are available with Primary
current input ranges from 400A to 1600A
The RI-CT090 Series have been designed for ease of
installation and are supplied with DIN rail clip, Busbar fixings
and fixing feet. They also have clear markings moulded into
the case to indicate the correct direction of primary current
flow to minimise installation errors.
version : 400/5A 500/5A 600/5A 750/5A 800/5A 1000/5A 1200/5A 1250/5A 1500/5A 1600/5A
| Combinations | Stock | Price | quantity | Add to cart |
400/5A
RI-CT090-400/5A |
2-3 weeks |
31,73 € |
|
|
500/5A
RI-CT090-500/5A |
2-3 weeks |
32,70 € |
|
|
600/5A
RI-CT090-600/5A |
2-3 weeks |
31,94 € |
|
|
750/5A
RI-CT090-750/5A |
2-3 weeks |
33,63 € |
|
|
800/5A
RI-CT090-800/5A |
2-3 weeks |
34,71 € |
|
|
1000/5A
RI-CT090-1000/5A |
2-3 weeks |
42,05 € |
|
|
1200/5A
RI-CT090-1200/5A |
2-3 weeks |
44,98 € |
|
|
1250/5A
RI-CT090-1250/5A |
2-3 weeks |
49,38 € |
|
|
1500/5A
RI-CT090-1500/5A |
2-3 weeks |
53,89 € |
|
|
1600/5A
RI-CT090-1600/5A |
2-3 weeks |
55,47 € |
|
