Profinet IO module with 4 CH Digital Input/ 2 CH Analog Input, 2 CH Digital Output
Availability : 1-2 weeks
ZE-4DI-2AI-2DO-P
Profinet IO module with 4 CH Digital Input/ 2 CH Analog Input, 2 CH Digital Output
Availability : 1-2 weeks
ZE-4DI-2AI-2DO-P

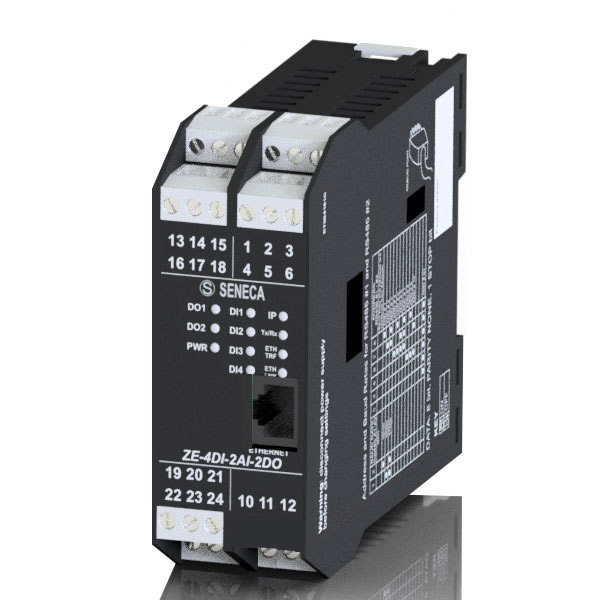

ZE-4DI-2AI-2DO-P is a Profinet I/O module with 4 digital inputs, 2 analog inputs, 2 digital relay outputs, and 1 Ethernet port. The module has isolation between the inputs and low voltage circuits of 1,500 Vac. Configuration can be done via CODESYS softPLC software and TiA Portal/Simatic Step7 design environment.
| POWER SUPPLY | 11.40 Vdc; 19..28 Vac |
| POWER CONSUMPTION | 1,5W @ 24Vdc, Max: 4W |
| ISOLATION | 1,5 kVac |
| PROTECTION DEGREE | IP20 |
| STATUS LED INDICATORS | Power supply/ IP address Rx/Tx Profinet Tx Ethernet Link Ethernet Inputs/outputs status Fail |
| OPERATING TEMPERATURE | -25..+70°C |
| STORAGE TEMPERATURE | -30..+85°C |
| CONNECTIONS | Removable screw terminals for conductors up to 2.5 mm2 IDC10 rear connector for DIN rail 46277 RJ45 |
| MOUNTING | 35 mm DIN rail 46277 |
| PROGRAMMING | DIP Switch (default settings) CODESYS softPLC software TiA Portal/Simatic Step7 Web Server |
| INTERFACES | Nr. 1 Ethernet 10/100 Mbps |
| SPEED | Up to 115.200 bps / 100 Mbps (TCP-IP) |
| SUPPORTED PROTOCOLS | Profinet IO |
| DIGITAL INPUTS | Nr. 4 |
| TYPE OF DIGITAL INPUTS | PNP / NPN; Voltage input OFF < 4V, ON > 8V (max. 30 Vdc) Max frequency 5 kHz Power consumption 3mA @ 12Vdc, 10mA @ 24Vdc |
| DIGITAL COUNTERS | Nr. 4 resettable counters @32 bit, max 5 kHz |
| ANALOG INPUTS | Nr. 2 |
| TYPE OF ANALOG INPUTS | 0-20 mA / 0-30 V Max resolution 16 bit Protection 40V / 25mA |
| DIGITAL OUTPUTS | Nr. 2 |
| TYPE OF DIGITAL OUTPUTS | Relays NA / NC SPDT, max 250Vac - 2A |
| HUMIDITY | 30..90% non-condensing |
| DIMENSION WXHXD | 35x102.5x111 mm |
| WEIGHT | about 110 g |
| HOUSING | PA6, black color |
| CERTIFICATIONS | CE |
