Strain gauge Profinet IO converter module
Availability : 1-2 weeks
R-SG3-P

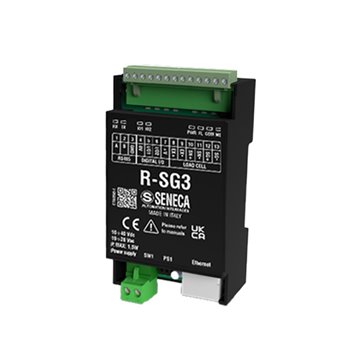

Strain gauge Profinet IO converter module
Availability : 1-2 weeks
R-SG3-P
| Power supply | 10..40 Vdc, 19..28 Vac (@50..60 Hz) |
| Power consumption | 1,5 W |
| Insulation | 1.500 Vac a 3 vie |
| Accuracy class | 0,01% |
| Status LED | IO1 status IO2 status Power supply Load cell overload Factory calibration status Ethernet TRF / LNK (Packet transit / Ethernet connection) |
| Input channel | 1 analog channel for reading (and power supply) up to 4 (350 Ω) or 8 (1,000 Ω) strain gauge load cells, 4 or 6-wire connection, equivalent impedance 87 Ω |
| Output channels | 2DI/2DO for tare calibration or weight threshold |
| Advanced features | Tare Silos function Piece counter function Tare reset function Tare acquisition Stable weighing signaling via Modbus Noise filter |
| Advanced settings | Firmware upgradeable Independent digital I/O Sampling frequency settable at a wide range Alarm threshold with programmable hysteresis Configurable resolution |
| Measurements | ADC 24 bit Ratiometric measurement Floating-point integer value The minimum net weight value Stabilized measurement with noise filter |
| Calibration methods | Factory calibration and calibration with sample weight via web server |
| Measurement / Diagnostics | Sensitivity from 1 to 64 mV/V |
| Thermal drift | 25 ppm/K |
| Interfaces | Nr.1 Ethernet port 100 Mbit baseT su RJ45 |
| Supported protocols | Profinet IO |
| Data | EEPROM for configuration parameters, retention time 40 years |
| Connections | Removable screw terminals for conductors up to 2.5 mm² MicroUSB port on the front panel |
| Programming | Web server |
| Protection degree | IP20 |
| Mounting | For DIN rail guide 35 mm DIN 46277 |
| Operating temperature | -20..+65°C |
| Dimension (WxHxD) | 53,3x90x32,2 mm |
| Weight | about 80 g |
| Housing | Nylon 6 preloaded 30% glass fiber, self-extinguishing class V0 |
| Standards | CE |
| Norms | EN 61000-6-4/2002, EN 61000-6-2/2002, EN 61010, EN 60742, IEC 61131 |
