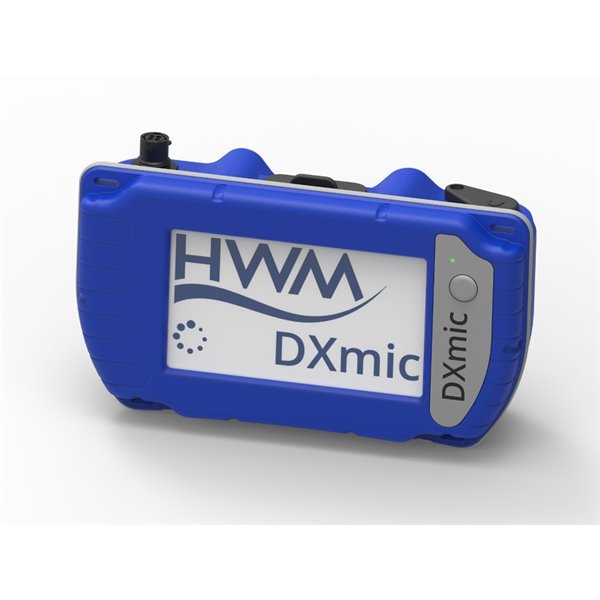

DXmic est le microphone terrestre de dernière génération de HWM. S'appuyant sur l'excellente réputation du Xmic, le DXmic est doté d'un écran tactile et de nombreuses nouvelles fonctionnalités innovantes.
Le DXmic offre une qualité sonore et des enregistrements audio de la plus haute qualité. La lecture ou tout autre bruit de fuite est facilement accessible via USB. L'appareil est livré avec une mallette de transport robuste qui peut également servir de station de charge pour l'appareil.
Caractéristiques principales et avantages
Excellente qualité audio: qualité sonore optimale.
Durable: Boîtier robuste avec fixations pour poignée de transport.
Écran tactile: graphiques multifonctionnels clairs et facilité d'utilisation.
Capacité sans fil: Pour un casque ou transférer des données audio / de configuration vers un PC (options de casque sans fil ou standard).
Chemin de mise à niveau clair: Compatible avec le capteur de sonde à pied et à main Xmic.
Capacité USB: Pour le transfert de données.
Piles rechargeables: cellules Li-ion avec une autonomie de 15 à 25 heures.
Prise en charge de l'enregistrement audio: fonctions de lecture pour référence et formation.
Facile à utiliser: filtres de suppression du niveau de bruit et de suppression du bruit.
Filtrage automatique amélioré: pris en charge par l'affichage de l'analyse de fréquence.
Version de l'application: pour le téléchargement ou les résultats et le transfert à distance Décalage de fréquence: passage des basses fréquences au spectre audible pour utilisation sur des pipelines en plastique.
Enregistrement de niveau sonore minimum: pour une localisation efficace.
Ordering code:
| DXMIC (Standard headphones + softcase) | |
| REPLACE DXMIC BY DXPRO TO HAVE THE PRO VERSION OF DXMIC | |
| DXMICLS+HANDPRO | DXmic Lite ground microphone. Includes base unit with colour LCD, magnetic and tripod sensor, handprobe, rods, standard headphones, mains charger in soft case |
| DXMIC/STD/S | DXmic ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", standard headphones, mains charger in soft case |
| DXMIC/STD/S+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, standard headphones, mains charger in soft case |
| DXMIC (Standard headphones + hardcase) | |
| DXMICLH+HANDPRO | DXmic Lite ground microphone. Includes base unit with colour LCD, magnetic and tripod sensor, handprobe, rods, standard headphones, integrated case charging in hard case |
| DXMIC/STD | DXmic ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", standard headphones, integrated case charging in hard case |
| DXMIC/STD+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, standard headphones, integrated case charging in hard case |
| DXMIC/STU+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, Sennheiser headphones, integrated case charging in hard case |
| DXMIC/DC+HANDPRO | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", magnetic and tripod sensor, handprobe, rods, Dave Clarke headphones, integrated case charging in hard case |
| DXMIC/STU | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", Sennheiser headphones, integrated case charging in hard case |
| DXMIC/DC | DXmic Complete ground microphone. Includes base unit with colour LCD, large surface sounding sensor "Elephants Foot", Dave Clarke headphones, integrated case charging in hard case |
| DXMIC OPTIONS | |
| DXPRO | TO HAVE THE PRO VERSION OF DXMIC, and use the Dxmic App |
| HANDPRO | Handprobe with, rod and tripod |
| HANDPRO US | Handprobe with thin rubber, rod and tripod |
| HANPRO MAGNET | Magnet for Hanpro |
| /AV | David Clarke, headphones |
| /STU | Studio Senheiser headphones |
| /BT | Bluetooth Zonoki Headphones |
| DXMIC EXTRA | |
| CABA6235 | DXMIC 12v car charger |
| RMICFOOT | Large surface sounding sensor "Elephants Foot" |
| RMICHAN | Handle only for "Elephants Foot" sensor |
| CABA6020 | Xmic to sensor cable |
| HANDPRO US | Handprobe with thin rubber, rod and tripod |
| CAS6000 | Optional hard case for Xmic Lite |
| CAS6010-2 | Optional hard case for Xmic |
| HEAAS4000 | David Clarke Headphones for Xmic |
| PC0205 | Tmic 12v car charger with USB adaptor |
| HEA0040 | Dxmic standard headphones |
| HEA8000 | Tmic/Dxmic Bluetooth headphones |
| HEAAS4005/S | Dxmic David Clarke Headphones |
| CABA6225 | Dxmic base unit to sensor cable |
| BAT3097 | Dxmic battery pack |
| HEAAS5000 | HD215 SENNHEISER HEADPHONE ASSY (MONO) |
| CABA6020 | X-MIC AMP TO R-MIC FOOT SENSOR CABLE 1.5M |
| BAT2010 | BATTERY PP3 NIMH- ARH9001- VARTA V7/8H |
| HDW6055 | X-MIC/LMIC HANDPROBE EXTENSION ROD MD-040-0014 NO TIP |
| HDW6050 | X-MIC/LMIC HANDPROBE ROD MD-040-0008 WITH TIP |
| CABA6020 | X-MIC AMP TO R-MIC FOOT SENSOR CABLE 1.5M CA-052-0003 |
| CABA6530 | L-MIC HANDPROBE TO L-MIC CABLE ASSY .75M CA-070-0009 |
| Frequency range | 0 to 5200Hz |
| Battery life | Minimum 25 hours (without backlight) |
| 15 hours (with backlight) | |
| Battery charge | Maximum 8 hours |
| Charger | Universal 110-240V AC mains charger with 12V DC output (Optional in car adapter) all items can be charged in case . |
| Weight | 180g (with batteries) |
| Temperature | Operating temperature range -15C to +50C |
| Dimensions | 193H x 109W x 60D mm (7.5”H x 4.2”W x 2.3”D). |
| Keypad | Touch screen LCD |
| Display | 5.0 inch TFT LCD |
| Single level display | 0-99 |
| Minimum level profiling | 10 readings |
| Headphones | Studio quality headphones are supplied as standard Aviation quality headphones are available as an option |
| 'Elephants foot'' microphone | High sensitivity piezo-electric sensor mounted in windproof, nitrile rubber housing. Low noise |
| 1.5m cable | |
| Weight: 2.9kg | |
| Hand probe Attachment optional | The hand probe is supplied with a tripod foot and two stainless steel probe rods For sounding in soft ground plus magnetic contact for better coupling to fittings Each probe rod is 400mm in length |
| Displays | Digital and 'meter' noise level Frequency analysis |
| Filter selection | |
| Memory feature |
