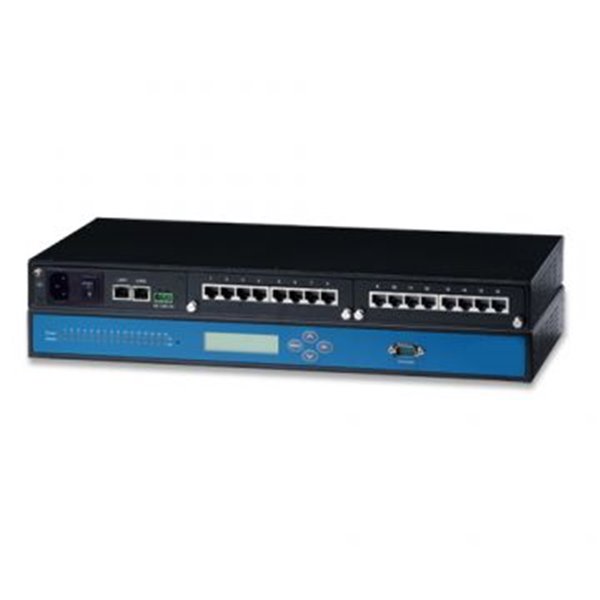

16-Port Rack-mount Secure Modbus TCP/RTU/ASCII Gateway

Remotely monitor, manage, and control industrial field devices
Industrial EMC protection, Opt. Serial port Isolation, -20°C~70°C operation
2 Fast-Ethernet ports with RSTP allowing also dual-subnet or redundancy
8/16 sw-selectable RS-232/485/422 (*) RJ45 serial ports, up to 921kbps with adjustable pull-high / pull-low resistors
24~48 VDC Power Input or 100~240 VAC Power input (EU or US version)
TCP Server/Client, UDP, Virtual COM and Tunneling modes supported
Supports SNMPv1/v2c/v3, Embedded security with IPsec VPN
Configuration via Web Browser / Serial Console / Telnet Console / Windows Utility

Diverse Hardware Infrastructure
Modbus Gateway supports the four most commonly used communication standards, RS-232/485/422, and Ethernet. The ease-of-use
configuration utility provided with Modbus Gateway can quickly select the hardware interface , and easily switch to the existing
communication infrastructure. Industrial EMC protection and wide temperature operation capability make MB5904D ready for every
mission. And if cabling is an issue, the PoE-powered version can allow MB5904D to be powered through PoE.

Advanced embedded security
MB5904D embeds IPsec VPN Encryption, that allows you to tunnel your data securely throught the internet and prevent unauthorized control of your Serial Devices by malicious people.

Switching between Modbus Protocols

Modbus Gateway supports the standard Modbus protocol and is capable of converting any Modbus protocols between Modbus TCP, Modbus RTU, and Modbus ASCII for all supported hardware interfaces. All of this, in bidirectional mode: Ethernet and Serial ends can selected to
be either master or slave

Modbus ID Routing
Modbus Gateway supports various types of hardware communication interfaces, Modbus protocol conversion, and Modbus ID routing. Therefore the Modbus Gateway can integrate your existing and complex Modbus hardware configuration into a simple network that can be
easily managed.

Specifications
Network Interface
Speed	IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X)
LAN Mode	Dual Subnets or Network Redundancy
Connector ports	2x 10/100BASE-T(X) RJ-45
Serial Interface
Connector	RJ45 RS-232/422/485 software selectable (-N models) or RJ45 Isolated RS-422/485 software selectable (-SiS models)
Port(s)	16
Baud rate	1200~921,600 bps software selectable
Parity	None, Odd, Even, Mark, Space
Data bits	5, 6, 7, 8 software selectable
Stop Bit	1,2 software selectable
Flow Control	None, Xon/Xoff, RTS/CTS (RS-232 only)
Isolation	2.5 KV (Sis versions only)
Power Characteristic
Connector	DC version: 5.08mm 3-pin Lockable Terminal Block EU-US version: IEC 60320-1 C14 AC Power Inlet
Input Voltage	DC version: 24 - 48VDC; US-EU version: 100~240 VAC (EU or US Plug)
Input Current (@ 12VDC)	DC version: 0.54 A @24VDC; US-EU version: 0.21A@100VAC
Power Consumption	Approximately 21 W (Max)
Reverse Polarity Protection	Yes (DC version only)
Redundancy	No
Relay Output	Yes (1)
Approval
EMC	FCC Part 15, Subpart B, Class B EN 55022, Class B, EN 61000-3-2, EN 61000-3-3, EN 55024
Safety	EN60950-1:2006/ IEC60950-1 LVD
Shock Drop (Freefall) /Vibration	IEC 60068-2-27 ISTA Test Procedure 2A /IEC 60068-2-64
RoHS	Yes
MTBF	5 years
Environment
Operating	-20°C~70°C (-4°F~158°F)
Storage	-40°C~85°C (-40°F~185°F)
Humidity	5~95%RH(Non-condensing)
Mechanical
Housing	IP30 SPCC housing
Dimensions (W x H x D)	436 mm x 43.5 mm x 200 mm
Installation	19' Rack-Mount (Kit included)
Reset Button	Yes
Weight	3,200g
Software
Configuration	Atop Management Utility, Web UI, Telnet
Supported Protocol	IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, HTTP, HTTPS, Telnet, RFC2217, Security through IPsec host-to-host or host-to-side VPN with up to 37.9Mbps VPN throughput
VirtualCOM	Windows/Linux redirection software
Link Mode
TCP Client	Dual destination supports raw-data or VirtualCOM
TCP Server	4 Connections mode supports raw-data; VirtualCOM or reverse Telnet
UDP	Up to 4 Ranges IP

Ordering code:

Model Name	Part Number	Description
MB5916D-N-DC	1P1MB591600001G	16-Port Modbus Gateway, RJ45, RS232/422/485 DC
MB5916-SiS-DC	1P1MB591600002G	16-Port Modbus Gateway, RJ45, Isolated RS422/485 DC
MB5916-N-EU	1P1MB591600013G	16-Port Modbus Gateway, RJ45, RS232/422/485 EU Plug
MB5916-N-US	1P1MB591600003G	16-Port Modbus Gateway, RJ45, RS232/422/485 US Plug
MB5916-SiS-EU	1P1MB591600014G	16-Port Modbus Gateway, RJ45, Isol. RS422/485 EU Plug
MB5916-SiS-US	1P1MB591600004G	16-Port Modbus Gateway, RJ45, Isol. RS422/485 US Plug
SDK version	Contact HQ	SDK Programmable version

Accesories:

Model Name	P/N	Description
SDR-75-24	50500752240001G	75W/3.2A DIN-Rail 24VDC power supply with universal 88~264VAC / 124~370VDC input
AD17-24C (US-Y)	50500151240002G	Y-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, US plug
AD17-24D (EU-Y)	50500151240012G	Y-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, EU plug
GDC-120	59906861G	120mm copper woven grounding cable
CBL-RJ45(8P)-DB9(M)-90	50891781G	RJ45 to DB9 Male Cable, 90cm
CBL-RJ45(8P)-DB9(M)-200	50891951G	RJ45 to DB9 Male Cable, 200cm
CBL-RJ45(8P)-DB9(F)-90	50891791G	RJ45 to DB9 Female Cable, 90cm
CBL-RJ45(8P)-DB9(F)-90-C	50891971G	RJ45 to DB9 Female Cross Over Cable, 90cm
CBL-RJ45(8)-DB9(F)-200-C	50891961G	RJ45 to DB9 Female Cross Over Cable, 200cm
RMK-718-Black	70100000000040G	Rack Mount Mounting-Kit, Black
Power Cable (US)	50801041G	6 feet Power Cable, US
Power Cable (EU)	50801051G	6 feet Power Cable, EU
Fuse	50709441G	SFP Transceiver, 1250Mbps, 1310nmDFB, Single-mode, 30km, 3.3V, -40~85°C
