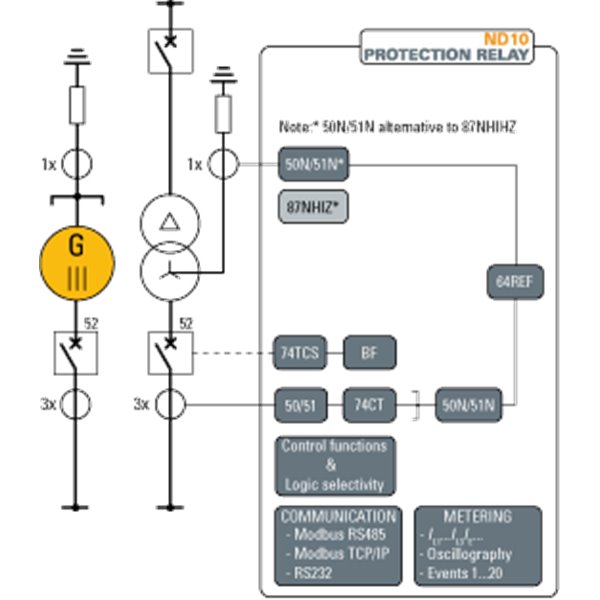

The relay type ND10 provides sensitive, high operating speed and selective restricted differential protection against ground faults of power transformer or generators. Both biased or high impedance types are available.
Specifications
Key: standard optional alternative
Applications • Bus • Feeder • Generator • Transformer Protection functions • Pt100 thermometric probes (26) • Phase overcurrent (50/51) • Residual overcurrent (50N/51N) • Low impedance restricted ground fault (64REF) • High impedance restricted earth fault (87NHIZ) • Breaker failure (BF) Monitoring and control functions • CB diagnostic • Cold Load Pickup (CLP) • CTs monitoring (74CT) • Digital Fault recording (DFR) • Fault and event logging (SER & SFR) • Logic selectivity • Multiple setting profiles • Programmable Logic Controller • Self-test • Trip circuit supervision (74TCS) Hardware • 2 binary inputs + 6 output relays + 8 LEDs • Auxiliary power supply 110-230 Vac/dc • Auxiliary power supply 24-48 Vac/dc • Flush, projecting, projecting, rack, with separate MMI • Network module with Ethernet FX port (optical fiber) • Network module with Ethernet TX port (copper RJ45) + RS485 port • Nominal current 1/5 A selectable by DIP-switch • RS485 port (unavailable with Ethernet FX port) • Standard CT amperometric inputs 1/5 A Communication • Modbus RTU RS232 protocol • Modbus RTU RS485 / IEC 870-5-103 / DNP3 protocol • Modbus TCP/IP protocol (network board must be provided)
