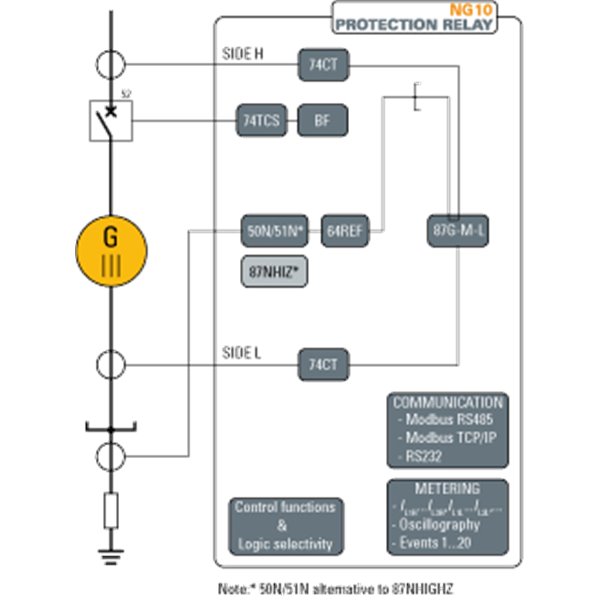

The relay type NG10 provides sensitive, high operating speed and selective differential protection against phase-to-phase and phase-to-ground short circuits of motors/generators or short lines.
Applications • Generator • Motor Protection functions • Pt100 thermometric probes (26) • Residual overcurrent (50N/51N) • Low impedance restricted ground fault (64REF) • Differential protection for generators and motors (87G/87M) • High impedance restricted earth fault (87NHIZ) • Breaker failure (BF) Monitoring and control functions • CB diagnostic • CTs monitoring (74CT) • Digital Fault recording (DFR) • Fault and event logging (SER & SFR) • Logic selectivity • Multiple setting profiles • Programmable Logic Controller • Self-test • Trip circuit supervision (74TCS) Hardware • 2 binary inputs + 6 output relays + 8 LEDs • Auxiliary power supply 110-230 Vac/dc • Auxiliary power supply 24-48 Vac/dc • Flush, projecting, projecting, rack, with separate MMI • Network module with Ethernet FX port (optical fiber) • Network module with Ethernet TX port (copper RJ45) + RS485 port • Nominal current 1/5 A selectable by DIP-switch • RS485 port (unavailable with Ethernet FX port) • Standard CT amperometric inputs 1/5 A Communication • Modbus RTU RS232 protocol • Modbus RTU RS485 / IEC 870-5-103 / DNP3 protocol • Modbus TCP/IP protocol (network board must be provided)
toepassing MOTOR|GENERATOR
ANSI protectie High impedance restricted earth fault (87NHIZ)|Differential protection for generators and motors (87G/87M)|Residual overcurrent (50N/51N)|Pt100 thermometric probes (26)|Low impedance restricted ground fault (64REF)|Breaker failure (BF)
